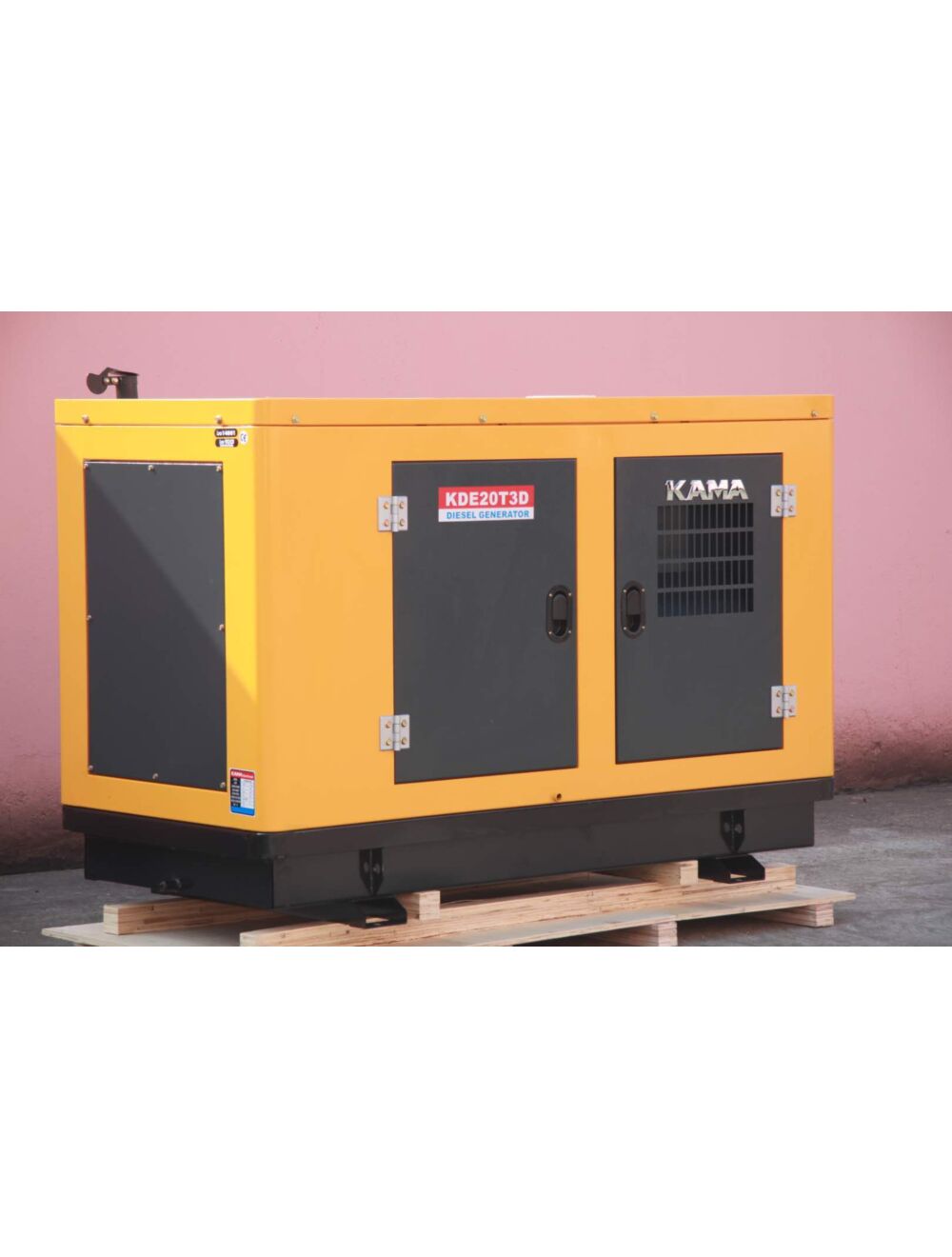

KAMA DIESEL AGGREGAT KDE 20 1 fase 230v og 3 fase 400v Rated frequency(Hz) 50 60 Rated voltage(V) 400/230 400/230 Rated current(A) 21.7 21.7 Rated output power(KW) 15 15 Max output power(KW) 16.5 16.5 Rated otation speed(rpm) 3000 3600 Power factor(cos) 0.8(Applied to KVA) Phase number Three phase Excitation mode Self-excitation and constant voltage(AVR) Overall dimension(LxWxH)[mm(in)] E:1270x830x940(50.00x32.68x37.01)T:1660x730x1020(65.35x28.74x40.16) Dry weigt[kg(ibs.) E:360(792),T:455(1001) Structure type E:Open-frame type T:Silent type Engine model KM380G Rated power[kW(Hz)/rpm] 21(28.56)/3000.21(28.56)/3600 Engine type Three cylinder,in-line,water-cooled,4-stroke,direct injection,diesel engine Bore*stroke[mm(in)] 80x90(3.15x3.54) Compression ratio 18:1 Total displacement[L(cu.in)] 1.357?82.81? Fuel consumption at full load[g(ml)/kW.h] <245?291? Starting system 12V electric starter Fuel 0#?summen?-10#(winter)light diesel oil Cooling system Forced water-cooled circulation Lube Capacity[L(gal.)] 38(8.36) Lube LECD grade 15W40
